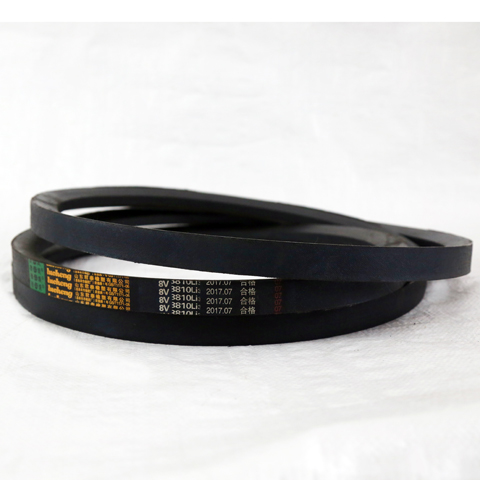

8V triangle belt

Rubber products > Triangle belt > 8V triangle belt

8V triangle belt

V-belt is composed of wrapping cloth, top cloth, top rubber, buffer rubber, tensile body, bottom rubber, bottom rubber clip cloth, bottom cloth, etc

A1550Naming of V-belt: take a1550 as an example, a as model, reference length 1550mm, and its name is a1550

A - model a

1550 - with reference length of 1550mm

Length can be negotiated by both parties


Belt type

Upper width

height

angle

marking length

Common triangle

Z

10

6

40

Li(Inner circumference)

A

13

8

40

Li(Inner circumference)

B

17

11

40

Li(Inner circumference)

C

22

14

40

Li(Inner circumference)

D

32

20

40

Li(Inner circumference)

Narrow V band

SPZ

10

8

40

LD(Pitch line length)

SPA

13

11

40

LD(Pitch line length)

SPB

17

14

40

LD(Pitch line length)

SPC

22

18

40

LD(Pitch line length)

9N(3V)

9.7

8

40

La(Circumference)

15N(5V)

16

13.5

40

La(Circumference)

25N(8V)

25.5

23

40

La(Circumference)

Selection method of V-belt

   1 The selected model shall be suitable for the selected V-belt, otherwise the V-belt will be abnormal in the pulley groove. When replacing V-belt, bring the old one to the agricultural machinery department for purchase to prevent the wrong model.

   2 Before the correct installation, install the V-belt and a group of V-belts in the same way.

   3 When installing the pulley in series, the centers of the two upper pulleys must be aligned, otherwise, the V-belt will work unilaterally, wear seriously, and reduce the service life of the V-belt.

   4 The proper tightness of V-belt must be checked and adjusted frequently to make it meet the requirements. Too loose V-belt is not only easy to slip, but also increases the wear of V-belt, even unable to transmit power. Too tight V-belt will not only elongate, deform and damage the V-belt, but also cause the main bearing and clutch bearing of the engine to suffer too much force, which will accelerate the wear of V-belt. The correct inspection method is: use your hand in the middle of each tape, apply a vertical pressure of about 2kg, and it is appropriate to sink 20-30mm, and adjust it in time if it is not suitable.

   5 When there are two or more V-belts to be replaced, the V-belts of the specified model shall be selected, and the tightness of each group of V-belts shall be the same.

   6 To prevent contamination, oil and muddy water in V-belt shall be strictly prevented, and contact with corrosive substances such as acid and alkali shall be avoided, so as to prevent slipping and early damage caused by corrosion of V-belt.

   7 The operators and users of the daily maintenance machine should master the correct operation essentials in the normal driving, and try to avoid sudden starting and sudden braking according to the technical requirements of the operation manual; also, it should prevent frequent overload operation; when the machine is out of service for a long time, the V-belt should be removed and stored separately.
